DGC-K Mechanical Type Rodless Cylinder DGC-K-25/100/200/300/400-PPV-A-GK
Specification
| Cylinder Bore Diameter |
18 |
25 |
32 |
40 |
50 |
63 |
80 |
| Structural Features |
Rodless cylinder with slide block |
||||||
| Guide |
Cylinder barrel with groove |
||||||
| Mode of Operation |
Double - acting |
||||||
| Stroke [mm] |
1...3000 |
1...8500 |
1...6000 |
1...5000 |
1...3000 |
||
| Air Inlet Interface |
M5 |
G1/8 |
G1/4 |
G3/8 |
G1/2 |
||
| Cushion [PPV] |
Double - end adjustable |
||||||
| Cushion Stroke [mm] |
16 |
18 |
20 |
30 |
30 |
30 |
83 |
| Maximum speed | |||||||
| With PPV Cushion [m/s] |
2 |
||||||
| With External Cushion [m/s] |
3 |
||||||
| Position Sensing |
Detected by proximity switch |
||||||
| Installation Method |
Via attachments |
||||||
| Installation Position |
Any |
||||||

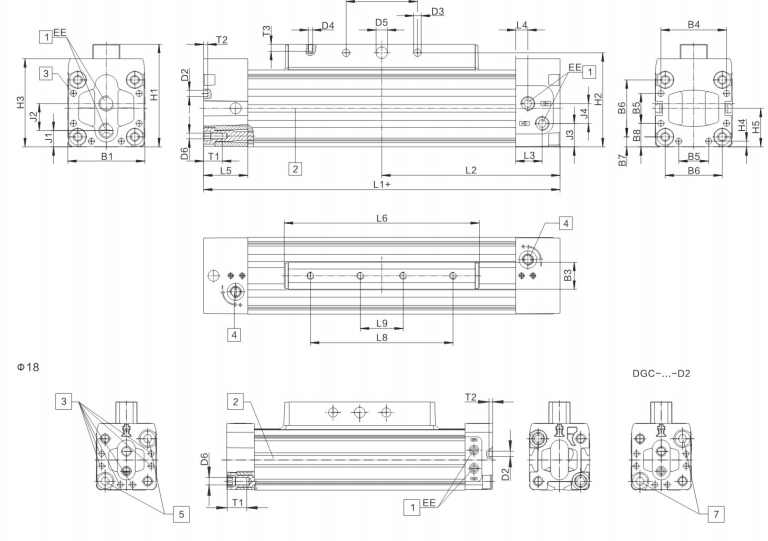

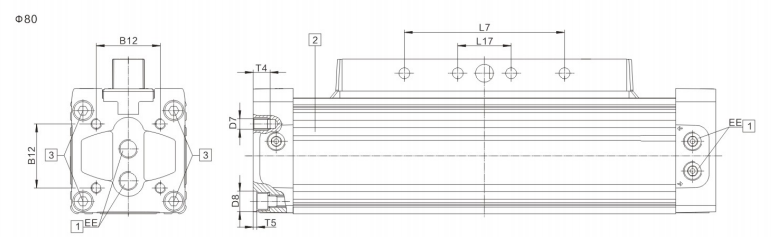

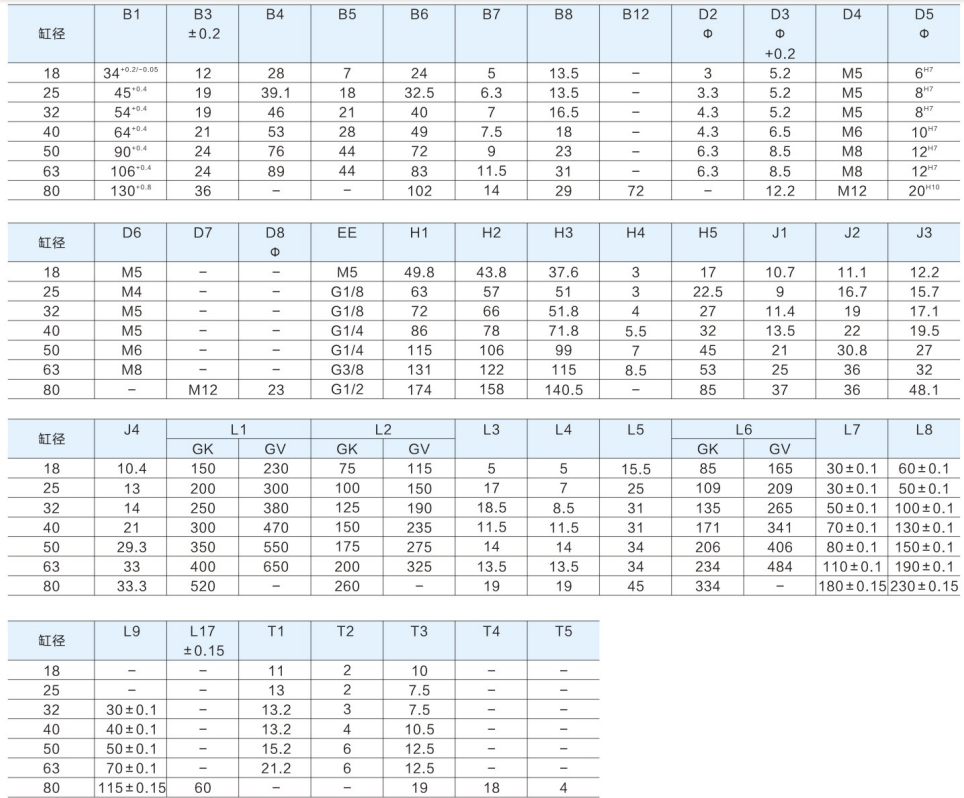

Dimensions
Characteristic
1.Pneumatic rodless cylinders , DGC-K series standard cylinders, follow pneumatic components industry standards in design and manufacturing, ensuring compatibility and reliability.
2.Rodless cylinders,very wide used in the automation field, especial in Europe market.
3.Rodless pneumatic air cylinders normally bore sizes :18mm,25mm,32mm,40mm,50mm...
4.DGC-K magnetically coupled rodless cylinder ,supports a longer travel range while maintaining stable load performance. It can carry workpieces of different weights according to needs, taking into account flexibility and practicality.
5.Rodless actuators without external guide, for simple drive functions.
6.The end-position cushioning must be adjusted to ensure jerk-free operation.
7.Supply cylinder kits, aluminium barrel, piston for customer assemble cylinder locally.
