We have been in international trade for 17 years. We can supply the whole production line for Factory: From extrusion to finished the Pneumatic Cylinder Tube.
The DNT air cylinder tube is new type for mickey mouse type.
Specification
|
Material |
6063-T5 |
|
Standard |
GB, EN, DIN, B.S., UNI, JIS, GOST, “AISISAEASTM” |
|
Inner Diameter |
Φ32~φ100 |
|
Inner Diameter Tolerance |
H11 |
|
Straightness Tolerance |
≤1mm/1000mm |
|
Surface Roughness |
Ra＜0.6μm |
|
Surface Treatment |
Clear Anodizing, Sandblasting Anodizing, Bronze Hard Anodizing |
|
Thickness of Internal and External Film |
≥15μm or Customized Requirement |
|
Hardness of Surface Oxide Film |
≥HV300 |
Chemical Composition
|
Mg |
Si |
Fe |
Cu |
Mn |
Cr |
Zn |
Ti |
|
0.81 |
0.41 |
0.23 |
<0.08 |
<0.08 |
<0.04 |
<0.02 |
<0.05 |
Specification
|
Tension Intensity (N/mm2) |
Yield Strength (N/mm2) |
Ductility (%) |
Surface Hardness |
Internal Diameter Accuracy |
Internal Roughness |
Straightness |
Thickness Error |
|
Sb 157 |
S 0.2 108 |
S8 |
HV 300 |
H11 |
< 0.6 |
1/1000 |
± 1% |
FAQ
Q1: What is the 6063?
A: The melting temperature of 6063 aluminum alloy is above 655 degrees, the extrusion temperature of 6063 aluminum profile is 490-510 for rod temperature, and 420-450 for extrusion barrel. Generally speaking, the temperature design of each extruded profile is different, but probably all Is in this range: mold temperature 470-490, set according to your own situation.
Q2: What is the standard for DNT Pneumatic Cylinder Tube?
A: It is ISO6431 standard.
Q3: What is the length for the custom Aluminum Profile For Air Cylinder?
A: 2Meter~2.5Meter.
Q4: How long does autoair take to deliver Aluminum Extrusion For Pneumatic Cylinders?
A: Autoair has the ability to supply a variety of standard pneumatic cylinder tube within a period of 7 working days.
If requires custom size, the lead time will take around 15 days. (It doesn’t include the mould opening time).
Q5: Are you available to supply extruded aluminum tube samples?
A: Yes, Autoair is able to provide extruded aluminum tube for you to check the quality, Normally, the sample is free for saving your cost, But it will require tooling cost if custom tube size.

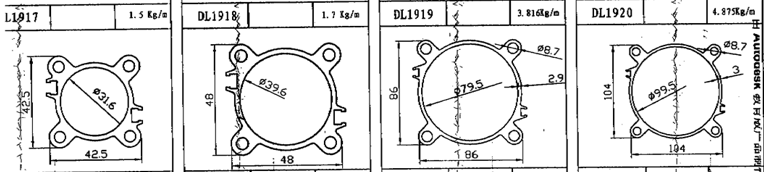

Product detail pictures:
