JMGP Dual Rod Pneumatic Cylinders – China Twin Rod Guided Air Cylinders for Industrial Automation

Short Description:

・Compact: Overall length shortened by 30.5 mm, Height shortened by 16 mm

・Weight: Max. 69% lighter (0.32 kg → 0.1 kg)

・3 mounting options:

Top mounting, Bottom mounting, Rear mounting

・Piping is possible in 4 directions.

・The solid state auto switch D-M9 is mountable.

・Suitable for pushing, lifting, or clamping in a transport line.

・Guided pneumatic cylinder dual rod double

Request Our Latest Price

Product Detail

Product Tags

Specification

Bore Size	φ12	φ16	φ20	φ25	φ32	φ40	φ50	φ63	φ80	φ100
Action	Double Acting
Fluid	Air
Proof pressure	1.05MPa
Max operating pressure	0.7MPa
Min operating pressure	0.15MPa
Ambint and fluid temperatures	5 to 60℃
Piston speed	50 To 300 mm/S								50 to 250 mm/S
Cushion	Not required(non-lube)
Lubrication	Not required(non-lube)

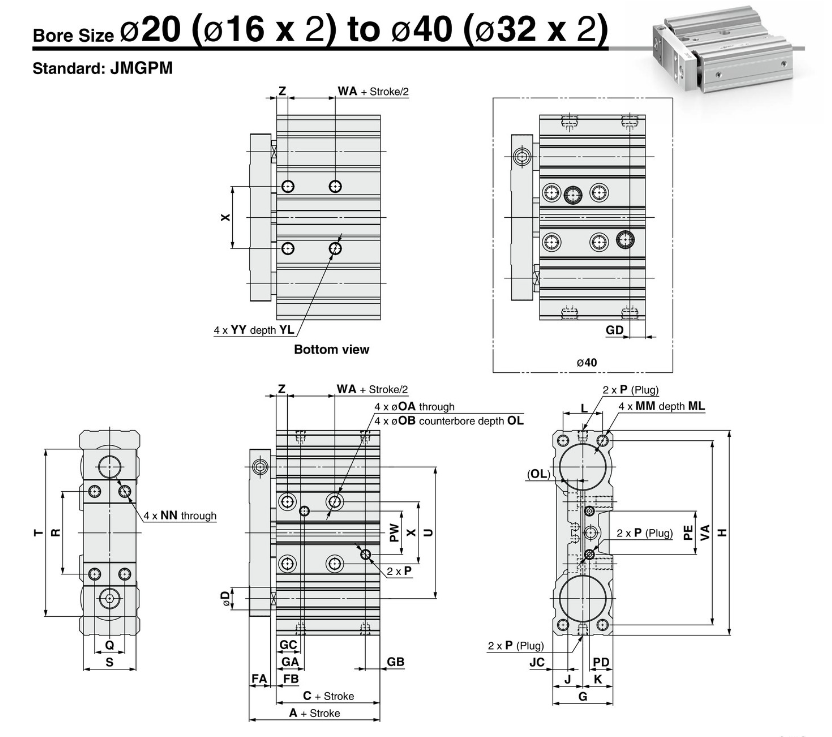

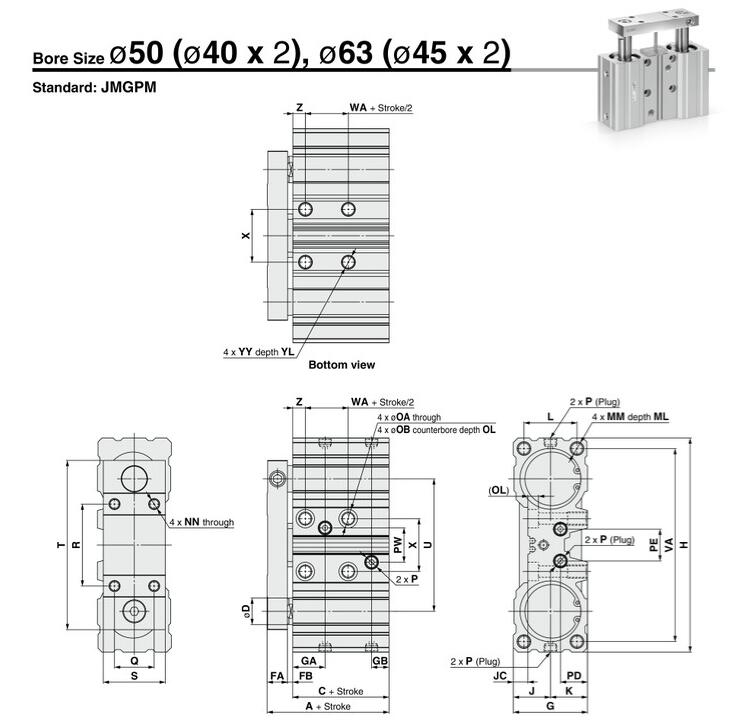

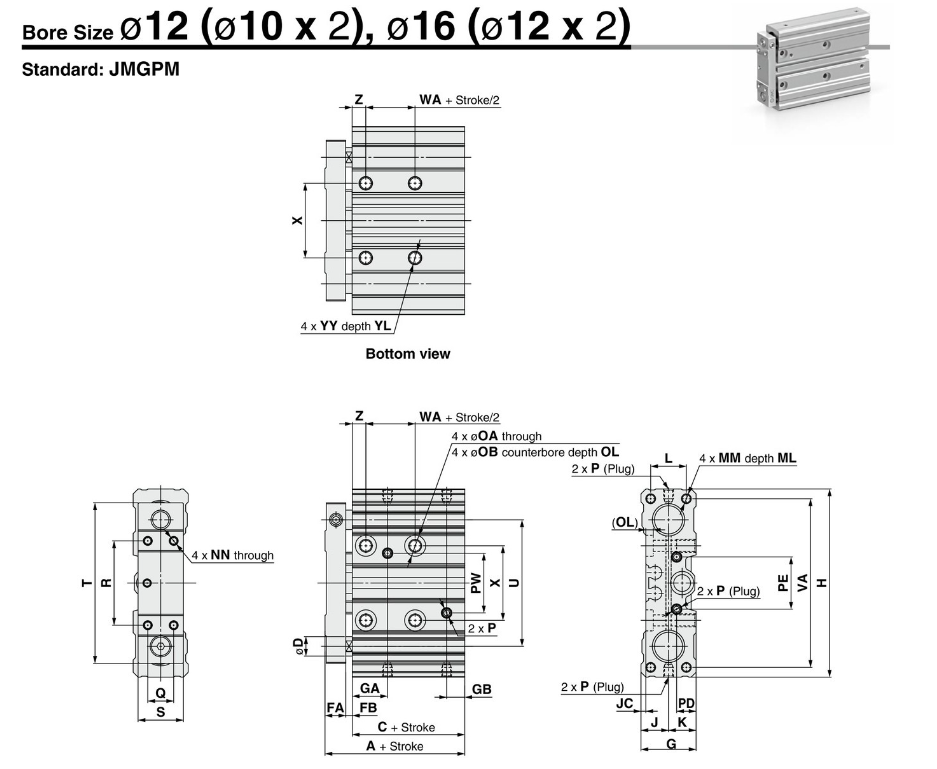

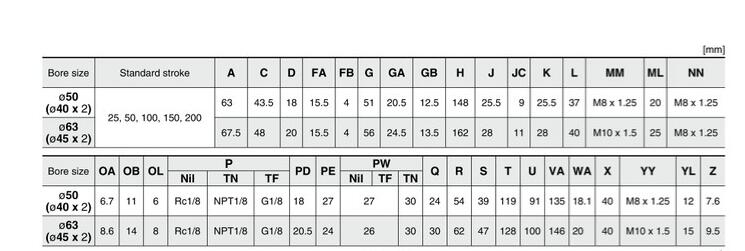

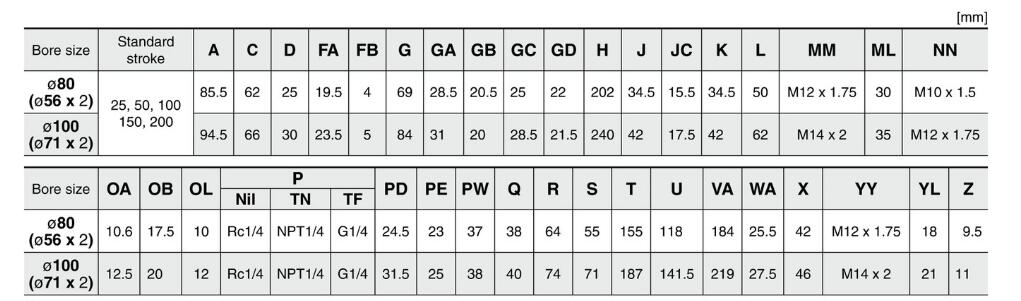

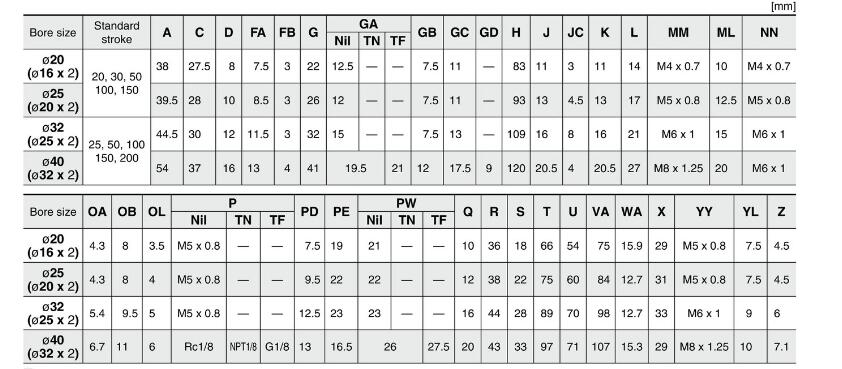

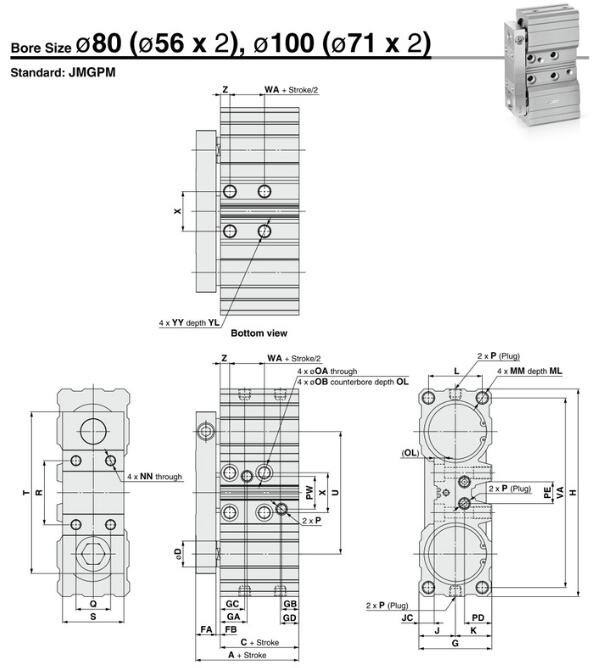

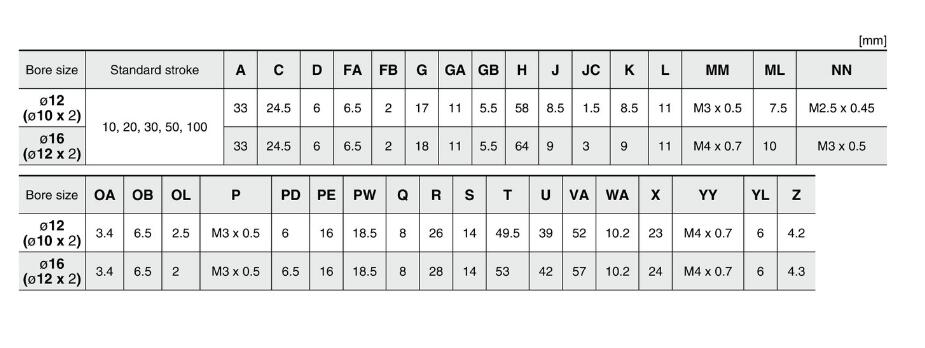

Dimensions

Characteristic

1.Follow pneumatic components industry standards in design and manufacturing, ensuring compatibility and reliability.

2.Very wide used in the automation field, especial in Europe market.

3.Normally bore sizes :12mm,16mm,20mm,25mm,32mm...

4.Auto Switch Proper Mounting Position (Detection at stroke end) and Mounting Height.

5. Allowable lateral load increased by 6.6 times.

6.Supply cylinder kits, aluminium barrel, piston for customer assemble cylinder locally.

Features

Pneumatics is the technology that uses compressed air to operate different mechanisms. In the industrial sector it is used in multiple processes and applications.The pressure energy of compressed air is converted into mechanical energy, and the driving mechanism makes linear reciprocating motion, swinging and rotating motion.

FAQ

Q1:What is the pneumatic cylinder?
A:China Pneumatic Cylinder refers to the assembly of the pneumatic cylinder including the Air Cylinders Tube(6063 Cylinder Tube) and piston rod, including the Pneumatic cylinder end cover, pneumatic cylinder piston, sealing ring, etc.
Q2:What is the material of pneumatic cylinder cover?
A:Due to the complex shape of the pneumatic cylinder end cover, aluminum alloy casting is generally used. Compared with cast iron cylinder heads, aluminum alloy pneumatic cylinder heads have the advantage of good thermal conductivity, which is beneficial to increase the compression ratio and improve work efficiency. In addition, compared with cast iron, aluminum alloy has an outstanding advantage in light weight, which is in line with the development direction of lightweight design.
Q3:What is the standard of your air cylinder?
A:Our pneumatic cylinder are produced in strict accordance with the standard of the international. In order to avoid air leakage, the size of the end cover must match the size of the pneumatic cylinder.
For example, our standard for MA pneumatic cylinders is ISO6432; our standard for SI pneumatic cylinders is ISO6431.
Q4: What is the material of pneumatic cylinder?
A:The cylinder barrel of the cylinder is made of stainless steel barrel.The Pneumatic Cylinder Assembly Kits of seal kit is made by NBR.
