MGP Series Three-Shaft Model Three-Rod Pneumatic Cylinder with Guide Rod

Short Description:

Working Medium:Air

Motion Pattern:Double-action

Ensured Pressure Resistance:1.5Mpa(15.3kgf/cm2)

Max.Operating pressure:1.0Mpa(10.2kgf/cm2)

Min. Operating pressure:0.12Mpa(1.2kgf/cm2)

Ambient and Medium Temperature:-10~+60℃

Request Our Latest Price

Product Detail

Product Tags

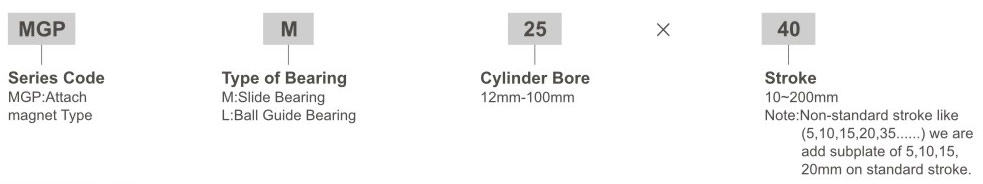

Ordering Code

Specification

Bore(mm)		12	16	20	25	32	40	50	63	80	100
Working Medium		Air
Motion Pattern		Double-action
Ensured Pressure Resistance		1.5Mpa(15.3kgf/cm2)
Max.Operating pressure		1.0Mpa(10.2kgf/cm2)
Min. Operating pressure		0.12Mpa(1.2kgf/cm2)
Ambient and Medium Temperature		-10~+60℃
Piston Speed		50~500mm/s								50~400mm/s
Buffer		Rubber Cushion
Tolerance of Stroke		+1.5 0 mm
Bearing		(Slide bearing/ball guide bdaring)
Precision of Piston rod Non-rotating	Slide Bearing	±0.08°		±0.07°		±0.06°		±0.05°		±0.04°
	Ball Guide Bearing	±0.10°		±0.09°		±0.08°		±0.06		±0.05°
Port size		M5×0.8		G1/8"				G1/4"		G3/8"

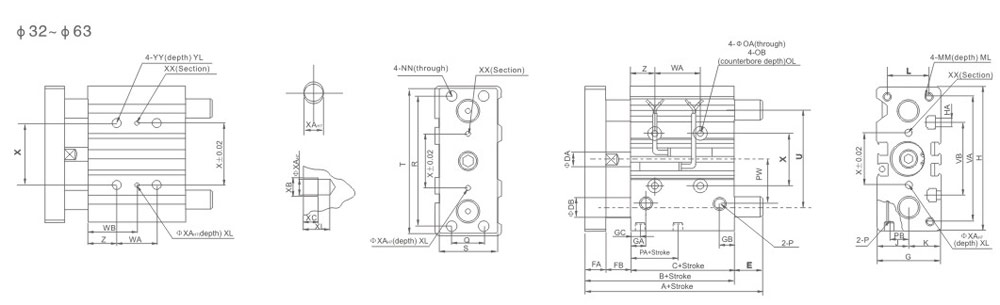

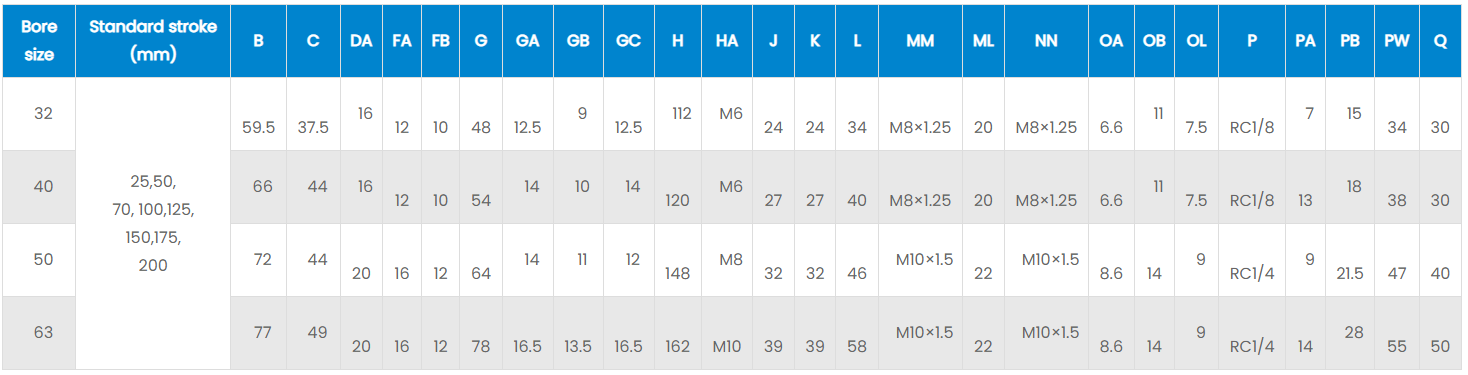

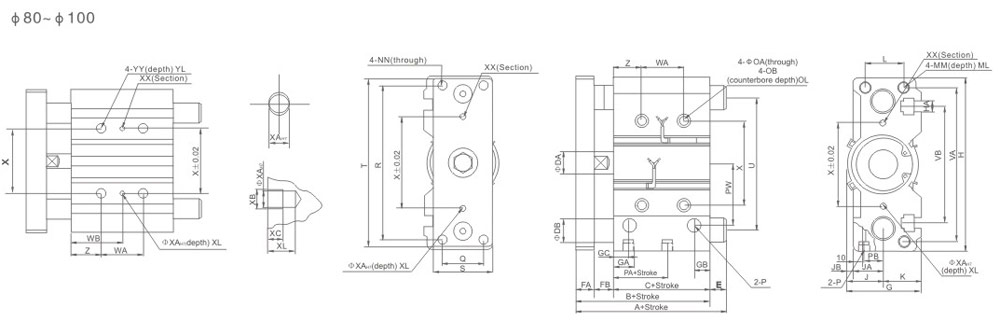

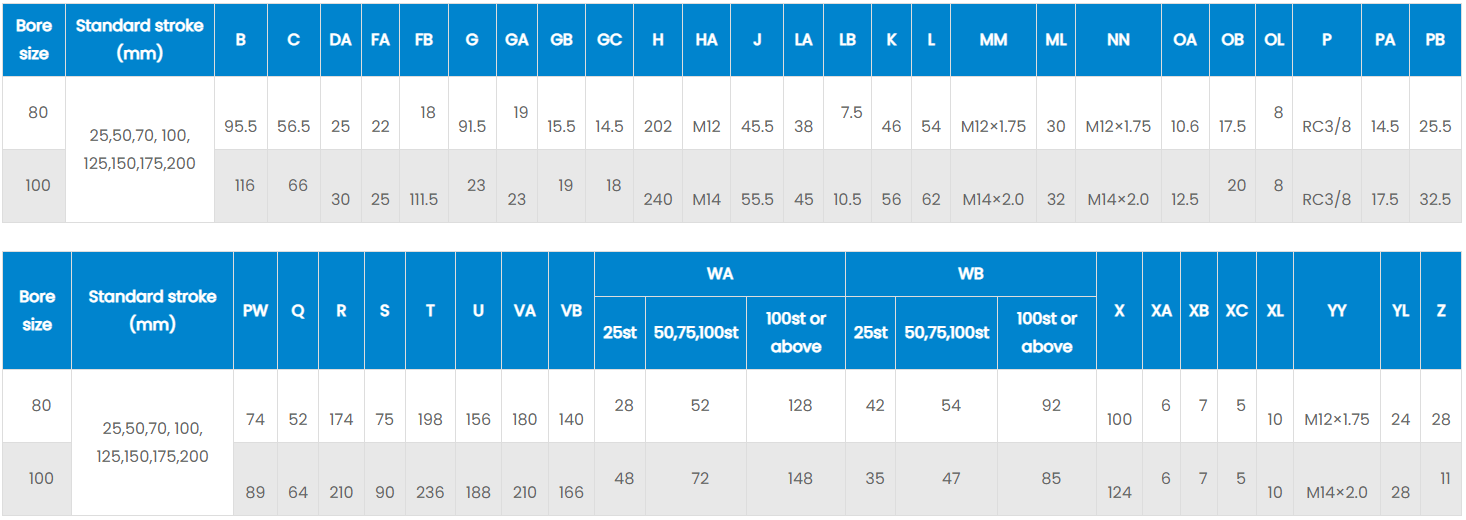

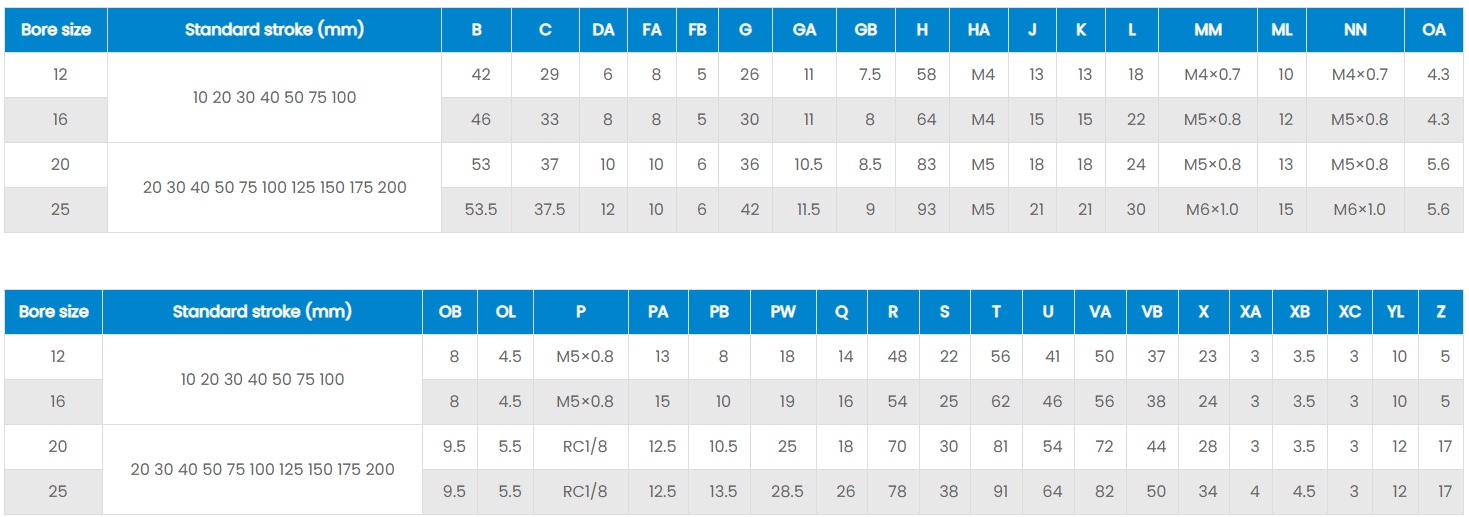

Dimensions

Bore size	Standard stroke (mm)	WA			WB			XL	YY
Bore size	Standard stroke (mm)	30 st or less	Over 40 st to 100 st	125 st or less	30 st or less	Over 40 st to 100 st	125 st or less	XL	YY
12	10 20 30 40 50 75 100	20	40	-	15	25	-	6	M5×0.8
16	10 20 30 40 50 75 100	24	44	-	17	27	-	6	M5×0.8
20	20 30 40 50 75 100 125 150 175 200	24	44	120	29	39	77	6	M6×1.0
25	20 30 40 50 75 100 125 150 175 200	24	44	120	29	39	77	6	M6×1.0

MGPG Slide bearing

Bore size	A			DB	E
Bore size	50st≥	50st＜100st≥	100st＜	DB	50st≥	50st＜100st≥	100st＜
12	42	60.5	85	8	0	18.5	43
16	46	64.5	95	10	0	18.5	49

MGPL Ball bushing bearing

A			DB	E
30st≥	30st＜100st≥	100st＜	DB	30st≥	30st＜100st≥	100st＜
43	55	85	6	1	13	43
49	65	95	8	3	19	49

MGPM Slide bearing

Bore size	A			DB	E
Bore size	50st≥	50st＜200st≥	200st＜	DB	50st≥	50st＜200st≥	200st＜
20	53	84.5	122	16	0	31.5	69
25	53.5	85	122	20	0	31.5	68.5

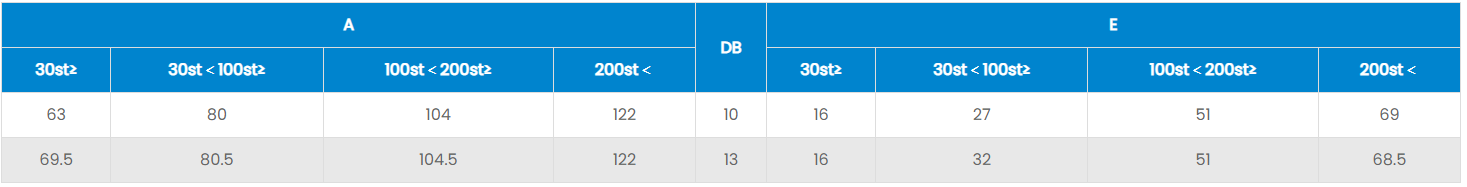

MGPL Ball bushing bearing

R	S	T	U	VA	VB	X	XA	XB	XC	XL	Z
96	44	110	78	98	63	42	4	4.5	3	6	21
104	44	118	85	106	72	50	4	4.5	3	6	22
130	60	146	110	130	92	66	5	6	4	8	24
130	70	158	124	142	110	80	5	6	4	8	24

MGPM Slide bearing

Bore size	A			DB	E
Bore size	50st≥	50st＜200st≥	200st＜	DB	50st≥	50st＜200st≥	200st＜
32	97	102	140	20	37.5	42.5	80.5
40	97	102	140	20	31	36	74
50	106.5	118	161	25	34.5	46	89
63	106.5	118	161	25	29.5	41	84

MGPL Ball bushing bearing

Bore size	A				DB	E
Bore size	50st≥	50st＜100st≥	100st＜200st≥	200st＜	DB	50st≥	50st＜100st≥	100st＜200st≥	200st＜
32	81	98	118	140	16	21.5	38.5	58.5	80
40	81	98	118	140	16	15	32	52	74
50	93	114	134	161	20	21	42	62	89
63	93	114	134	161	20	16	37	57	84

Bore size	A			DB	E
Bore size	50st≥	50st＜200st≥	200st＜	DB	50st≥	50st＜200st≥	200st＜
80	115	142	193	30	18.5	45.5	96.5
100	137	162	203	36	21	46	87

Bore size	A				DB	E
Bore size	50st≥	25st＜50st≥	50st＜200st≥	200st＜	DB	50st≥	25st＜50st≥	50st＜200st≥	200st＜
80	109.5	130	160	193	25	13	33.5	63.5	96.5
100	121	147	180	203	30	5	31	64	87

Other info

Bore size(mm)	Standard stroke(mm)
12, 16	10 20 30 40 50 75 100 125 150 175 200 250
20, 25	20 30 4050 75 100 125 150 175 200 250 300 350 400
32 to 100	25 50 75 100 125 150 175 200 250 300 350 400

Characteristic

1.Three-Rod Guide Pneumatic Cylinder,MGPM series guided cylinders are designed and manufactured in accordance with general standards in the pneumatic components industry , ensuring compatibility and reliability.

2.Three-Rod Pneumatic Cylinder with Guide Rod,very wide used in the automation field, especial in Europe market.

3.Normally bore sizes ：12mm,16mm,20mm,25mm...

4.With the same compact appearance as relevant series, available with built-in magnets, and avoiding protruding components through appropriate sensor installation methods.

5.The piston rod is equipped with a self-lubricating related structure, which requires low maintenance. The adjustable buffer makes the cylinder run smoothly, safely and quietly, and the service life is increased.

6.Three-axis Pneumatic Cylinder,easier and various mounting via female threads or mounting accessories, adapting to different equipment layouts.

7.Supply cylinder kits, aluminium barrel, piston for customer assemble cylinder locally.

Features

Pneumatics is the technology that uses compressed air to operate different mechanisms. In the industrial sector it is used in multiple processes and applications.The pressure energy of compressed air is converted into mechanical energy, and the driving mechanism makes linear reciprocating motion, swinging and rotating motion.

FAQ

Q1:What is the pneumatic cylinder?
A:China Pneumatic Cylinder refers to the assembly of the pneumatic cylinder including the Air Cylinders Tube(6063 Cylinder Tube) and piston rod, including the Pneumatic cylinder end cover, pneumatic cylinder piston, sealing ring, etc.
Q2:What is the material of pneumatic cylinder cover?
A:Due to the complex shape of the pneumatic cylinder end cover, aluminum alloy casting is generally used. Compared with cast iron cylinder heads, aluminum alloy pneumatic cylinder heads have the advantage of good thermal conductivity, which is beneficial to increase the compression ratio and improve work efficiency. In addition, compared with cast iron, aluminum alloy has an outstanding advantage in light weight, which is in line with the development direction of lightweight design.
Q3:What is the standard of your air cylinder?
A:Our pneumatic cylinder are produced in strict accordance with the standard of the international. In order to avoid air leakage, the size of the end cover must match the size of the pneumatic cylinder.
For example, our standard for MA pneumatic cylinders is ISO6432; our standard for SI pneumatic cylinders is ISO6431.
Q4: What is the material of pneumatic cylinder?
A:The cylinder barrel of the cylinder is made of stainless steel barrel.The Pneumatic Cylinder Assembly Kits of seal kit is made by NBR.
