OSP/OSP-P Rodless Air Cylinder Double Action Standard Long Stroke Mechanically Pneumatic Piston Rodless Air Cylinder
Ordering Code
| OSP - P |
25 |
口 |
口 |
口 |
口 |
口 |
01500 |
| Series No. | BoreDiameter | Piston
Installation |
Air Supply Port | Seal | Sealing
Grease |
Screw | Stroke
Length |
| 10 = 10mm | 0 =
Standard |
0 = Standard | 0 =
Standard |
0=
Standard |
0 = Standard |
0 - 6000mm |
|
| 16 = 16mm | 1 = On the End Face | ||||||
| 25 = 25mm | 2 = Air Inlet at Both Ends | ||||||
| 32 = 32mm | A = VOE 24V | ||||||
| 40 = 40mm | 1 = Series
Connection |
B = VOE 230V - 110V | 1=
Fluororubber |
1=
LowSpeed |
1 = Stainless Steel |
||
| 50 = 50mm | C = VOE 48V | ||||||
| 63 = 63mm | E = VOE 110V | ||||||
| 80 = 80mm |
Specification
| Characteristic Description | Symbol | Unit | Description | |
| General Characteristics | ||||
| Type | Rodless cylinder | |||
| Series | OSP - P | |||
| System | Dual - direction drive, with buffer and positioning sensing capabilities | |||
| Support | Bell mouth | |||
| Air Inlet Interface | Threaded interface | |||
| Ambient and Medium Temperature | T min | °C | -10 - +80 (Other temperature ranges can be customized) | |
| T max | °C | |||
| Installation | Any position | |||
| Medium | Filtered, Unlubricated compressed air (Other media can be customized) | |||
| Lubricating Oil | Permanently lubricated (No additional mist lubrication required) | |||
| Special low - flow lubricating oil can be selected | ||||
| Material | Cylinder Barrel | Anodized aluminum | ||
| Material - Slide (Piston) | Anodized aluminum | |||
| Material - End Cover | Aluminum, painted | |||
| Material - Sealing Strip | Corrosion - resistant steel strip | |||
| Material - Sealing Element | NBR | |||
| Material - Screw | Electroplated Steel, optional: stainless steel | |||
| Material - Dust - proof Cover | Plastic | |||
| Maximum Operating Pressure | P max | bar | 8 | |

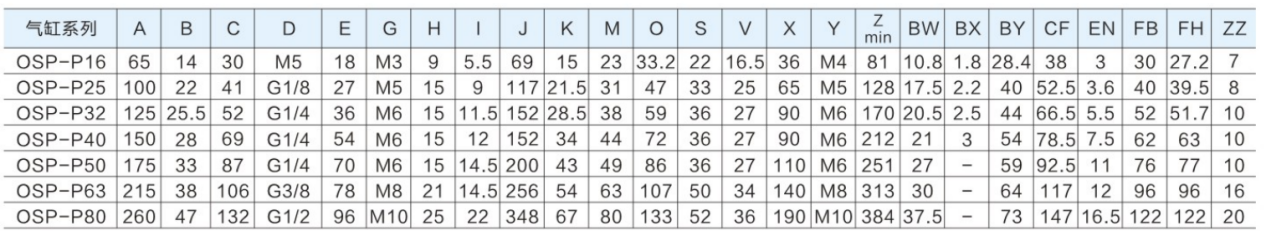

Dimensions

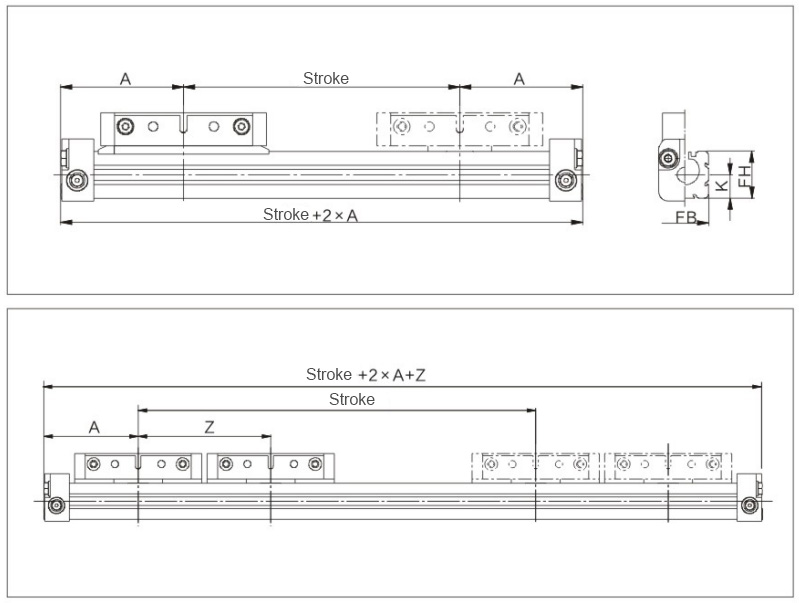

Basic cylinder size OSP-P10

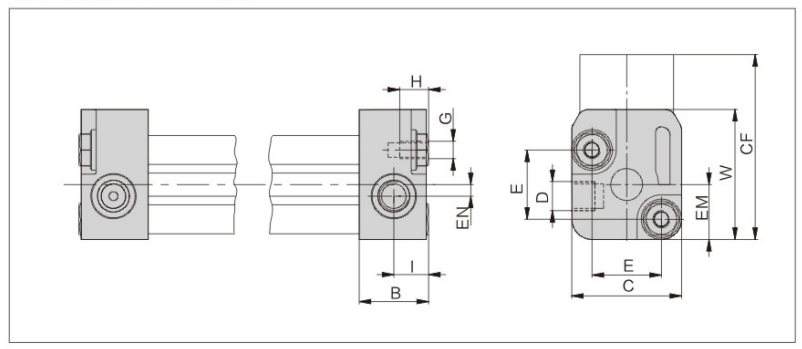

End cap/air source interface
Slider OSP-P10

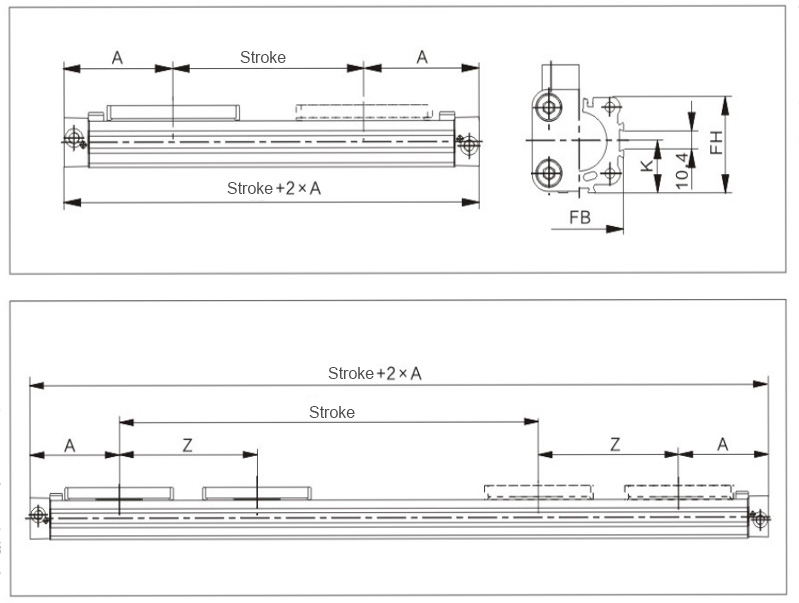

Basic cylinder size OSP-P16-P80

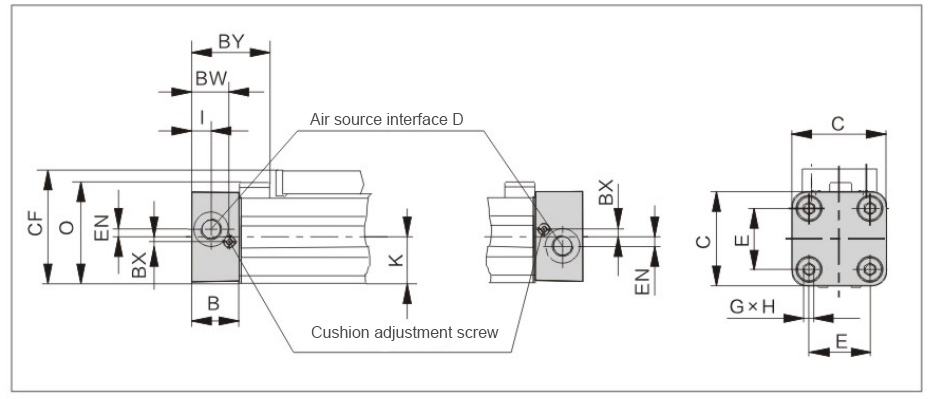

End cap/air source interface can be rotated 4X90°
OSP-P16-P32

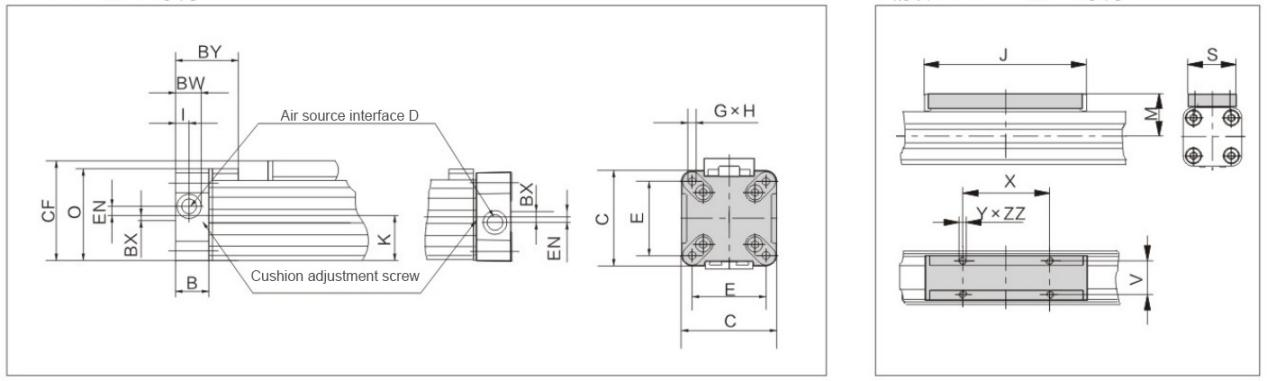

OSP-P40-P80 Slider OSP-P16-P80
Characteristic
1.Pneumatic rodless cylinders , OSP/OSP-P series standard cylinders, follow pneumatic components industry standards in design and manufacturing, ensuring compatibility and reliability.
2.Rodless cylinders,very wide used in the automation field, especial in Europe market.
3.Rodless pneumatic air cylinders normally bore sizes :10mm,16mm,25mm,32mm...
4.The OSP-P rodless actuator is a linear actuator, guidance and control package designed into a modular system. Ideally suited for point-to point, reciprocating and simple traverse / transfer applications.
5.Modular system with widest range of guides & dynamic brakes.
6.Magnetically Coupled Rodless Cylinder is equipped with a special cushioning system for cycle time optimization.
7.Supply cylinder kits, aluminium barrel, piston for customer assemble cylinder locally.
Features
Pneumatics is the technology that uses compressed air to operate different mechanisms. In the industrial sector it is used in multiple processes and applications.The pressure energy of compressed air is converted into mechanical energy, and the driving mechanism makes linear reciprocating motion, swinging and rotating motion.
FAQ
Q1:What is the pneumatic cylinder?
A:China Pneumatic Cylinder refers to the assembly of the pneumatic cylinder including the Air Cylinders Tube(6063 Cylinder Tube) and piston rod, including the Pneumatic cylinder end cover, pneumatic cylinder piston, sealing ring, etc.
Q2:What is the material of pneumatic cylinder cover?
A:Due to the complex shape of the pneumatic cylinder end cover, aluminum alloy casting is generally used. Compared with cast iron cylinder heads, aluminum alloy pneumatic cylinder heads have the advantage of good thermal conductivity, which is beneficial to increase the compression ratio and improve work efficiency. In addition, compared with cast iron, aluminum alloy has an outstanding advantage in light weight, which is in line with the development direction of lightweight design.
Q3:What is the standard of your air cylinder?
A:Our pneumatic cylinder are produced in strict accordance with the standard of the international. In order to avoid air leakage, the size of the end cover must match the size of the pneumatic cylinder.
For example, our standard for MA pneumatic cylinders is ISO6432; our standard for SI pneumatic cylinders is ISO6431.
Q4: What is the material of pneumatic cylinder?
A:The cylinder barrel of the cylinder is made of stainless steel barrel.The Pneumatic Cylinder Assembly Kits of seal kit is made by NBR.
