TN Series Double-Shaft Pneumatic Cylinders – China Dual Rod Guided Air Cylinders | Twin Rod Pneumatic Cylinders for Industrial Use

Short Description:

Motion Pattern:Double action

Working Medium:Air

Operating Voltage Range:1~9kgf/cm2

Ensured Pressure Resistance:10.5kgf/cm2

Operating Temperature Range:-5~+70℃

Operating Speed Range:100~500mm/s

Request Our Latest Price

Product Detail

Product Tags

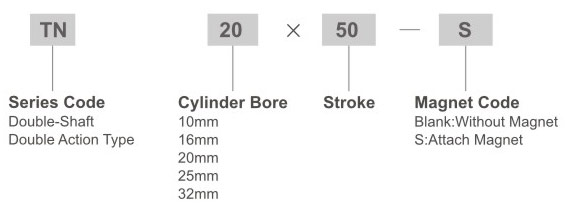

Ordering Code

Specification

Bore(mm)	10	16	20	25	32
Motion Pattern	Double action
Working Medium	Air
Operating Voltage Range	1~9kgf/cm2
Ensured Pressure Resistance	10.5kgf/cm2
Operating Temperature Range	-5~+70℃
Operating Speed Range	100~500mm/s
Adjustable Stroke	-10~0mm
Cushion Type	Adjustable Cushion
Non-rotating Precision	0.4℃	0.3℃
Port Size	M5×0.8				G1/8"

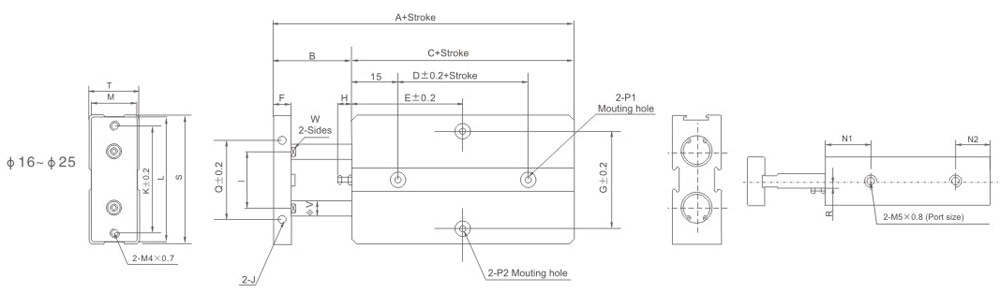

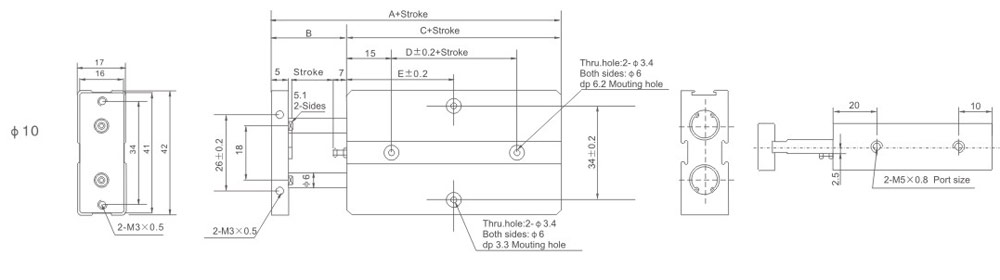

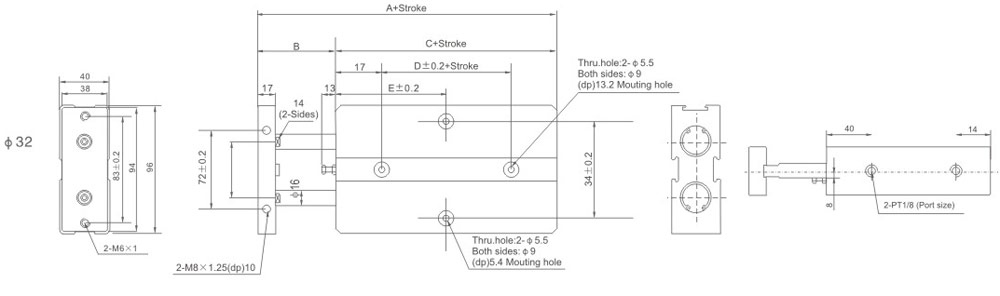

Dimensions

Bore	A	B	C	D	E
Size	A	B	C	D	10	20	30	40	50	60	70
10	63	12	51	10	30	30	35	40	45	50	55

Bore	A	B	C	D	E												F	G	H	I
Size	A	B	C	D	10	20	30	40	50	60	70	80	90	100	125	150	F	G	H	I
16	68	15	53	20	30	35	40	45	50	55	60	65	70	75	87.5	100	8	47	6	24
20	78	20	58	20	35	35	40	45	50	55	60	65	70	75	87.5	100	10	55	9	28
25	81	19	62	30	40	40	45	50	55	60	65	70	75	80	92.5	105	10	66	8	34

Bore/Size	J	K	L	M	N1	N2	P1	P2	Q	R	S	T	V	W
16	M4×0.7 Deep 5	47	53	20	22	11	Both size :φ7.5(dp) 7.2mm Thru.hole: φ4.5	Both size:φ8(dp) 4.4mm Thru.hole: φ4.5	34	3	54	21	8	6.1
20	M4×0.7 Deep 5	55	61	24	25	12	Both size:φ7.5(dp) 7.2mm Thru.hole: φ4.5	Both size:φ8(dp) 4.4mm Thru.hole: φ4.5	44	3.5	62	25	10	8.1
25	M4×0.7 Deep 6	66	72	29	27	12	Both size:φ7.5(dp) 7.2mm Thru.hole: φ4.5	Both size:φ8(dp) 4.4mm Thru.hole: φ4.5	56	7	73	30	12	10.2

Bore	A	B	C	D	E
Size	A	B	C	D	10	20	30	40	50	60	70	80	90	100	125	150
32	108	30	78	35	45	50	55	60	65	70	75	80	85	90	102.5	115

Characteristic

1.Follow pneumatic components industry standards in design and manufacturing, ensuring compatibility and reliability.

2.Very wide used in the automation field, especial in Europe market.

3.Normally bore sizes :10mm,16mm,32mm,25mm,32mm...

4.Embedded installation and fixation mode saves the installation space.

5.Mounting holes on three sides facilitates multi-position mounting.

6.Supply cylinder kits, aluminium barrel, piston for customer assemble cylinder locally.

Features

Pneumatics is the technology that uses compressed air to operate different mechanisms. In the industrial sector it is used in multiple processes and applications.The pressure energy of compressed air is converted into mechanical energy, and the driving mechanism makes linear reciprocating motion, swinging and rotating motion.

FAQ

Q1:What is the pneumatic cylinder?
A:China Pneumatic Cylinder refers to the assembly of the pneumatic cylinder including the Air Cylinders Tube(6063 Cylinder Tube) and piston rod, including the Pneumatic cylinder end cover, pneumatic cylinder piston, sealing ring, etc.
Q2:What is the material of pneumatic cylinder cover?
A:Due to the complex shape of the pneumatic cylinder end cover, aluminum alloy casting is generally used. Compared with cast iron cylinder heads, aluminum alloy pneumatic cylinder heads have the advantage of good thermal conductivity, which is beneficial to increase the compression ratio and improve work efficiency. In addition, compared with cast iron, aluminum alloy has an outstanding advantage in light weight, which is in line with the development direction of lightweight design.
Q3:What is the standard of your air cylinder?
A:Our pneumatic cylinder are produced in strict accordance with the standard of the international. In order to avoid air leakage, the size of the end cover must match the size of the pneumatic cylinder.
For example, our standard for MA pneumatic cylinders is ISO6432; our standard for SI pneumatic cylinders is ISO6431.
Q4: What is the material of pneumatic cylinder?
A:The cylinder barrel of the cylinder is made of stainless steel barrel.The Pneumatic Cylinder Assembly Kits of seal kit is made by NBR.
