6060W European Standard Aluminum Alloy Profile – Single-slot Material 60*60 Frame Assembly and Processing, Aluminum Pneumatic Cylinder Barrel

Short Description:

Material: Aluminum Alloy (6063-T5)

Thickness: 2.5mm

Weight per meter: 3.71kg/m

Application: Mostly used for high-strength structural frame construction.

Request Our Latest Price

Product Detail

Product Tags

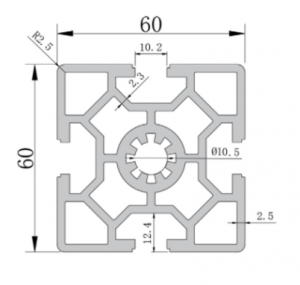

6060W European Standard Aluminum Alloy Profile

Material: Aluminum Alloy (6063-T5)

Thickness: 2.5mm

Weight per meter: 3.71kg/m

Application: Mostly used for high-strength structural frame construction.

Characteristic

Extrusion Aluminum T-Slot 60 Series
The Extrusion Aluminum T-Slot 60 Series is engineered for unparalleled strength and adaptability, featuring a 60mm slot width that supports a comprehensive range of connection components. This series is ideal for the largest and most complex constructions, including vast industrial frameworks, heavy machinery enclosures, and extensive automation infrastructure. Its ultra-sturdy design ensures remarkable durability and stability, allowing for rapid assembly and seamless reconfiguration to meet evolving project requirements.

Feature

Extrusion Aluminum T-Slot profiles are versatile and modular, featuring a T-shaped groove for easy assembly and reconfiguration. Ideal for workstations, machine guards, and custom automation systems, these profiles offer flexibility and strength.

Material Of Aluminum Alloy Profile Aluminum Pneumatic Cylinder Tube: Aluminum Alloy 6063 T5

Our standard Length is 2000mm, if need other length, please freely to inform us.
Anodized surface: Inner tube-15±5μm Outer tube-10±5μm
Accords to design FESTO, SMC, Airtac, Chelic etc.
Accords to the standard ISO 6430 ISO6431 VDMA 24562 ISO15552 etc.
Used for standard cylinder, compact cylinder, mini cylinder, Dual Rod cylinder, Slide cylinder, Slide Table cylinder, Gripper etc. Also for some special cylinders.

Chemical Composition:

Chemical Composition	Mg	Si	Fe	Cu	Mn	Cr	Zn	Ti
Chemical Composition	0.81	0.41	0.23	<0.08	<0.08	<0.04	<0.02	<0.05

Specification:

Tension Intensity (N/mm2)	Yield Strength (N/mm2)	Ductility (%)	Surface Hardness	Internal Diameter Accuracy	Internal Roughness	Straightness	Thickness Error
Sb 157	S 0.2 108	S8	HV 300	H9-H11	< 0.6	1/1000	± 1%

Torlerance Of Aluminium Alloy Tube:

TORLERANCE OF ALUMINIUM ALLOY TUBE
Bore Size	TORLERANCE
mm	H9(mm)		H10(mm)		H11(mm)
16		0.043		0.07		0.11
20		0.052		0.084		0.13
25		0.052		0.084		0.13
32		0.062		0.1		0.16
40		0.062		0.1		0.16
50		0.062		0.1		0.16
63		0.074		0.12		0.19
70		0.074		0.12		0.19
80		0.074		0.12		0.19
100		0.087		0.14		0.22
125		0.1		0.16		0.25
160		0.1		0.16		0.25
200		0.115		0.185		0.29
250		0.115		0.185		0.29
320		0.14		0.23		0.36
